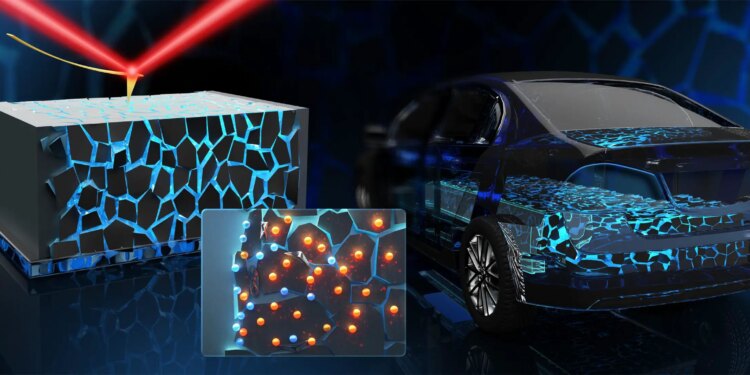

Stable-state batteries might provide many benefits sooner or later, together with for the use in electrically powered vehicles. Credit score: Xue Zhang / MPI-P
Groundbreaking analysis has the potential to pave the best way for batteries with considerably prolonged lifespans.
A mess of on a regular basis devices comparable to electrical vehicles, cellphones, and cordless energy instruments now depend on rechargeable batteries. Nonetheless, this rising development does current sure challenges. Sure cellphones, as an example, had been prohibited on flights attributable to security issues, whereas some electrical vehicles had been reported to have caught hearth. That is largely as a result of sensitivity of latest business lithium-ion batteries to mechanical stress.
An rising answer to those points could possibly be using “solid-state batteries”. These batteries diverge from the norm by changing the liquid core — often known as the electrolyte — with a wholly stable materials like ceramic ionic conductors. Consequently, they provide a bunch of advantages comparable to being mechanically sturdy, non-combustible, simply miniaturized, and proof against temperature fluctuations.
However solid-state batteries present their issues after a number of charging and discharging cycles: Whereas the constructive and damaging poles of the battery are nonetheless electrically separated from one another at the start, they’re finally electrically related to one another by inside battery processes: “Lithium dendrites” slowly develop within the battery. These lithium dendrites develop step-by-step throughout every charging course of till the 2 poles are related. The outcome: the battery is short-circuited and “dies.”.To this point, nonetheless, the precise bodily processes that happen on this course of will not be but properly understood.
A staff led by Rüdiger Berger from Hans-Jürgen Butt’s division has now tackled the issue and used a particular microscopy technique to research the processes in additional element. They investigated the query of the place the lithium dendrites begin to develop. Is it like in a flowstone cave the place stalactites develop from the ceiling and stalagmites from the ground till they be part of within the center and type a so-called “stalagnate?” There is no such thing as a prime and backside in a battery — however do dendrites develop from the damaging to the constructive pole or from the constructive to the damaging pole? Or do they develop equally from each poles? Or are there particular locations within the battery that result in nucleation after which dendritic development from there?
Rüdiger Berger’s staff seemed particularly at so-called “grain boundaries” within the ceramic stable electrolyte. These boundaries are shaped in the course of the manufacturing of the stable layer: The atoms within the crystals of the ceramic are principally very usually organized. Nonetheless, attributable to small, random fluctuations in crystal development, line-like constructions are shaped the place the atoms are organized irregularly — a so-called “grain boundary.”
These grain boundaries are seen with their microscopy technique — “Kelvin Probe Pressure Microscopy” — wherein the floor is scanned with a pointy tip. Chao Zhu, a PhD pupil working with Rüdiger Berger says: “If the solid-state battery is charged, the Kelvin Probe Pressure Microscopy sees that electrons accumulate alongside the grain boundaries — particularly close to the damaging pole.” The latter signifies that the grain boundary not solely adjustments the association of the atoms of the ceramics but additionally their digital construction.
As a result of accumulation of electrons — i.e. damaging particles — positively charged lithium ions touring within the stable electrolyte may be lowered into metallic lithium. The outcome: lithium deposits and lithium dendrites type. If the charging course of is repeated, the dendrite will proceed to develop till lastly the poles of the battery are related. The formation of such preliminary phases for dendrite development was solely noticed on the damaging pole — additionally noticed solely at this pole. No development was noticed on the reverse constructive pole.
The scientists hope that with a exact understanding of the expansion processes, they can even have the ability to develop efficient methods to forestall or at the very least restrict development on the damaging pole in order that sooner or later the safer lithium solid-state batteries can be utilized in broadband functions.
Reference: “Understanding the evolution of lithium dendrites at Li6.25Al0.25La3Zr2O12 grain boundaries through operando microscopy strategies” by Chao Zhu, Until Fuchs, Stefan A. L. Weber, Felix. H. Richter, Gunnar Glasser, Franjo Weber, Hans-Jürgen Butt, Jürgen Janek and Rüdiger Berger, 9 March 2023, Nature Communications.
DOI: 10.1038/s41467-023-36792-7
